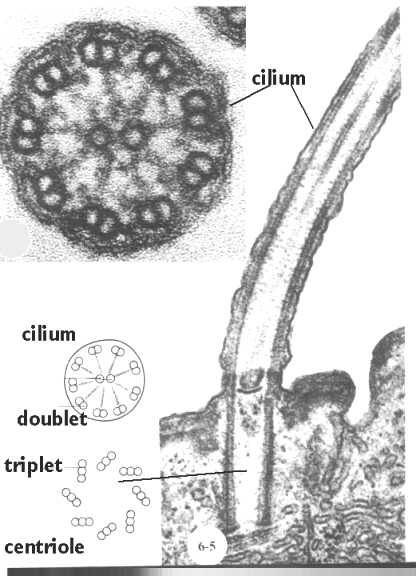

![]() Cilia and flagella are projections from the cell. They are made up of microtubules, as shown in this cartoon and are covered by an extension of the plasma membrane. They are motile and designed either to move the cell itself or to move substances over or around the cell. The primary purpose of cilia in mammalian cells is to move fluid, mucous, or cells over their surface. Cilia and flagella have the same internal structure. The major difference is in their length. This figure shows a cross section of a cilium next to
a longitudinal section. Below, we will see how the microtubules are
organized in the core (shown in the cartoon in this figure). Also
shown is the centriole or basal body that organizes the formation and
direction of the cilia.How do
Cilia and Flagella move? |
![]() Cilia and flagella move because of the interactions of a set of microtubules inside. Collectively, these are called an "axoneme", This figure shows a microtubule (top panel) in surface view and in cross section (lower left hand panel). Two of these microtubules join to form one doublet in the cilia or flagella This is shown in the middle panel. Note that one of the tubules is incomplete. Furthermore, there are important microtubule associated proteins (MAPs) projecting from one of the microtubule subunits.
|

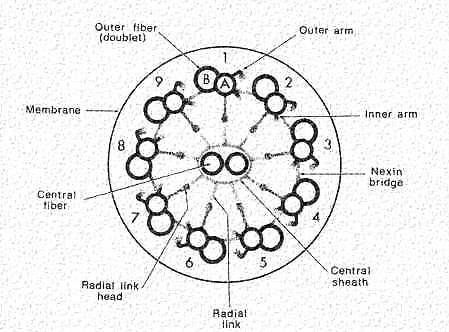

A cross section of a cilium is shown in this cartoon.
Note that there is a circle of nine doublets, each of which have one
complete (A Tubule) and one incomplete (B Tubule) microtubules. The Core
doublets are both complete. Extending from t |
![]() This figure shows an electron micrograph of a cross section of a cilium. Note that you can see the dynein arms and the nexin links. The dynein arms have ATPase activity. In the presence of ATP, they can move from one tubulin to another. They enable the tubules to slide along one another so the cilium can bend. The dynein bridges are regulated so that sliding leads
to synchronized bending. Because of the nexin and radial spokes, the
doublets are held in place so sliding is limited lengthwise. If nexin and
the radial spokes are subjected to enzyme digestion, and exposed to ATP,
the doublets will continue to slide and telescope up to 9X their length.
|
![]() Another micrograph of the cell surface showing a number of cilia. These must be organized functionally so the cilia beat in a wave.Centrioles and Basal Bodies |
![]() |
Centrioles control the direction of cilia or flagella movement.Paramecium have parallel rows of cilia all aligned so
that they will beat in the same direction. However, in the 1960's rows of
cilia/basal bodies were grafted into Paramecium and they were able to show
a change in direction of the beat. The cells passed on the change to
future generations even though this was not a genetic
alteration.
|

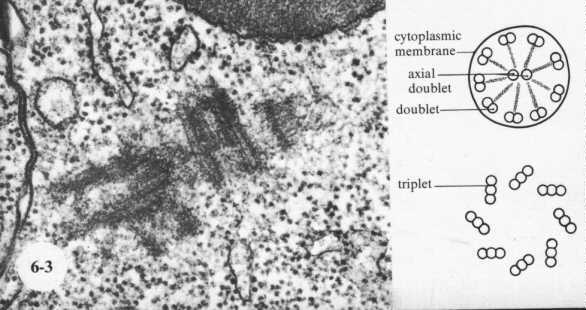

![]() Centriole Replication. |

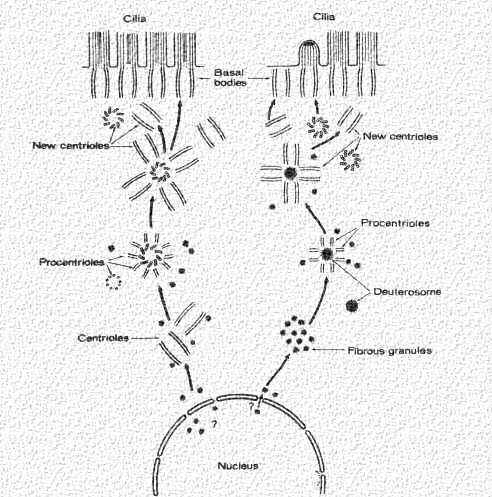

![]() Centrioles replicate autonomously like mitochondria and peroxisomes. They begin from centers which contain proteins needed for their formation (tubulin, etc.), Then the procentrioles form. Each grows out a single microtubule from which the triplet can form. Once a centriole is made, daughter centrioles can grow out from the tubules at right angles as shown in this cartoon. These then add to the daughter cell (in a dividing cell), or they move to the periphery and form the basal body for the cilium. |
