Overview of Transient Overvoltages


The users of electronic equipment and telephone and data-processing systems must face the problem of keeping this equipment in operation in spite of the transient overvoltages induces by lightning. There are several reasons for this fact (1) the high level of integration of electronic components makes the equipment more vulnerable, (2) interruption of service is unacceptable (3) data transmission networks cover large areas and are exposed to more disturbances.


Transient overvoltages have three main causes:

  • Lightning
  • Industrial and switching surges
  • Electrostatic Discharge (ESD)


The overvoltages of different origins differ in amplitude, energy, waveform and recurrence rate. Various domestic and international standards have created guidelines for protecting against these harmful electrical disturbances. They suggest a coordinated protection approach encompassing the entire facility. Citel offers a wide range of products for the AC power line by building location.



Lightning
Lightning, investigated since Benjamin Franklin’s first research in 1749, has paradoxically become a growing threat to our highly electronic society.

Lightning formation

A lightning flash is generated between two zones of opposite charge, typically between two storm clouds or between one cloud and the ground.

The flash may travel several miles, advancing toward the ground in successive leaps: the leader creates a highly ionized channel. When it reaches the ground, the real flash or return stroke takes place.

A current in the tens of thousands of Amperes will then travel from ground to cloud or vice versa via the ionized channel.

Direct effects

At the moment of discharge there is an impulse current flow that ranges from 1,000 to 200,000 Amperes peak, with a rise time of about a few microseconds. This direct effect is a small factor in damage to electric and electronic systems, because it is highly localized.

The best protection is still the classic lightning rod or Lightning Protection System (LPS), designed to capture the discharge current and conduct it to a particular point.

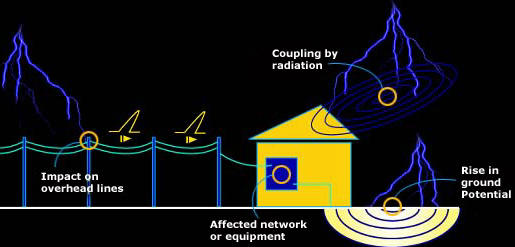

Indirect effects
There are three types of indirect lightning effects:


Impact on overhead lines

Such lines are very exposed and ma be struck directly by lightning, which will first partially or completely destroy the cables, and then cause high surge voltages that travel naturally along the conductors to line-connected equipment. The extent of the damage depends on the distance between the strike and the equipment.

Rise in ground potential

The flow of lightning in the ground causes earth potential increases that vary according to the current intensity and the local earth impedance. In an installation that may be connected to several grounds (e.g. link between buildings), a strike will cause a very large potential difference and equipment connected to the affected networks will be destroyed or severely disrupted.

Electromagnetic radiation

The flash may be regarded as an antenna several miles high carrying an impulse current of several tenths of kilo-amperes, radiating intense electromagnetic fields (several kV/m at more than 1km). These fields induce strong voltages and currents in lines near or on equipment. The values depend on the distance from the flash and the properties of the link.

Industrial surges
This term covers phenomena caused by switching electric power sources on or off.

Industrial surges are caused by:

  • Starting motors or transformers
  • Neon and sodium light starters
  • Switching power networks
  • Switch “bounce” in an inductive circuit
  • Operation of fuses and circuit breakers
  • Falling power lines
  • Poor or intermittent contacts

These phenomena generate transients of several kV with rise times of the order of the microsecond, disturbing equipment in networks to which the source of disturbance is connected.

Electrostatic overvoltages

Electrically, a human being has a capacitance ranging from 100 to 300 picofarads, and can pick up a charge of as much as 15kV by walking on carpet, then touch some conducting object and be discharged in a few microseconds, with a current of about ten Amperes. All integrated circuits (CMOS, etc.) are quite vulnerable to this kind of disturbance, which is generally eliminated by shielding and grounding.

Effects of overvoltages
Overvoltages have many types of effects on electronic equipment in order of decreasing importance:

Destruction:

  • Voltage breakdown of semiconductor junctions

  • Destruction of bonding of components

  • Destruction of tracks of PCBs or contacts

  • Destruction of triacs/thyristors by dV/dt.

Interference with operations:

  • Random operation of latches, thyristors, and triacs

  • Erasure of memory

  • Program errors or crashes

  • Data and transmission errors

Premature ageing:
Components exposed to overvoltages have a shorter life.

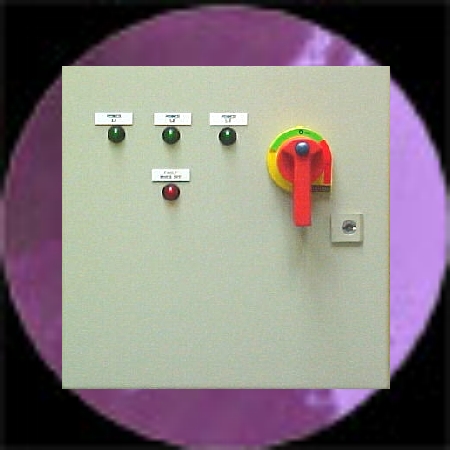

Surge Protection Devices
The Surge Protection Device (or SPD: this is a generic name for any device to protect from voltage surges) is a recognized and effective solution to the overvoltage problem. For greatest effectiveness, however, it must be chosen according to the risk and installed in accordance with the rule of the art.


Standards
Because of the diversity and importance of transients, standards organizations have created specifications for testing the reactions of equipment to overvoltages.

The phenomena were first characterized and a series of standardized waves created (1.2/50µs voltage wave and 8/20µs and 10/350µs current waves), then a number of standards defining surge arrestor performance were issued, among them:

Surge Protectors for low-voltage installations

  • NFC 61740 (France)

  • VDE 0675 (Germany)
  • UL 1449 (USA)
  • IEC 61643-1-1 (International)

Surge Protectors and recommendations for telecom equipment

  • IEC 61644-1 (International)

  • ITU-T recommendations K11, K12, K17, K20, K22, K36 (International)

  • UL 497A/B (USA)
